The industry leader for pressurizing closed-loop hydronic systems introduces the newest ‘PRESSURE PAL’ to the Axiom Product Family. The DMF300 utilizes a digital pressure control (0-45 psi) with electronic alert contacts. The front fill point makes fluid handling a simple process.
System Feeders, Light Commercial

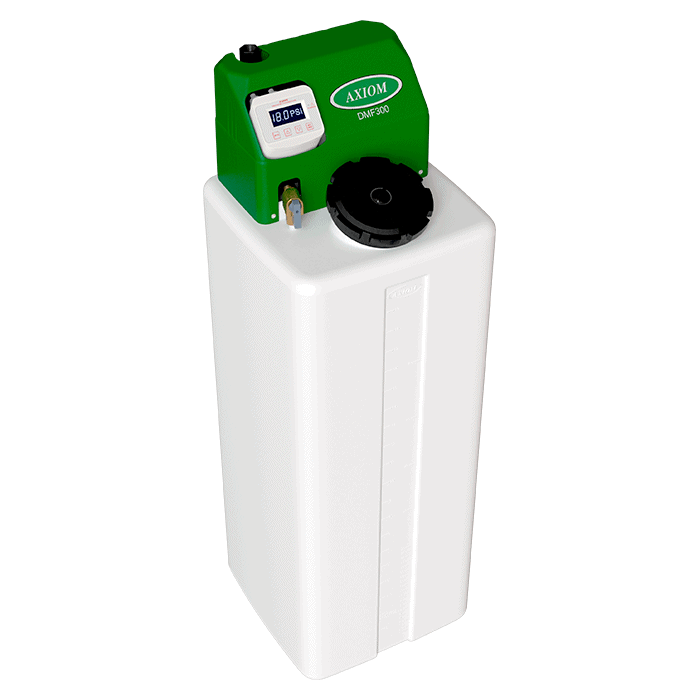

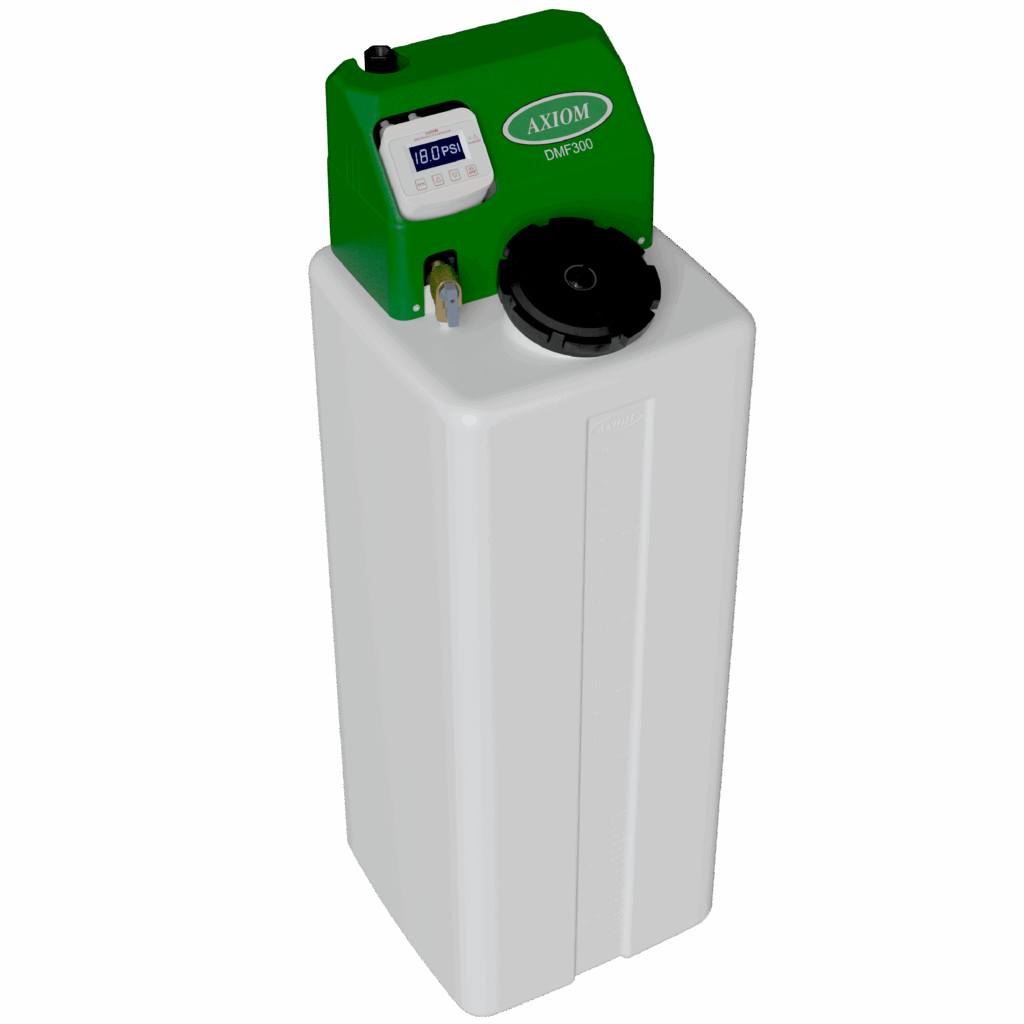

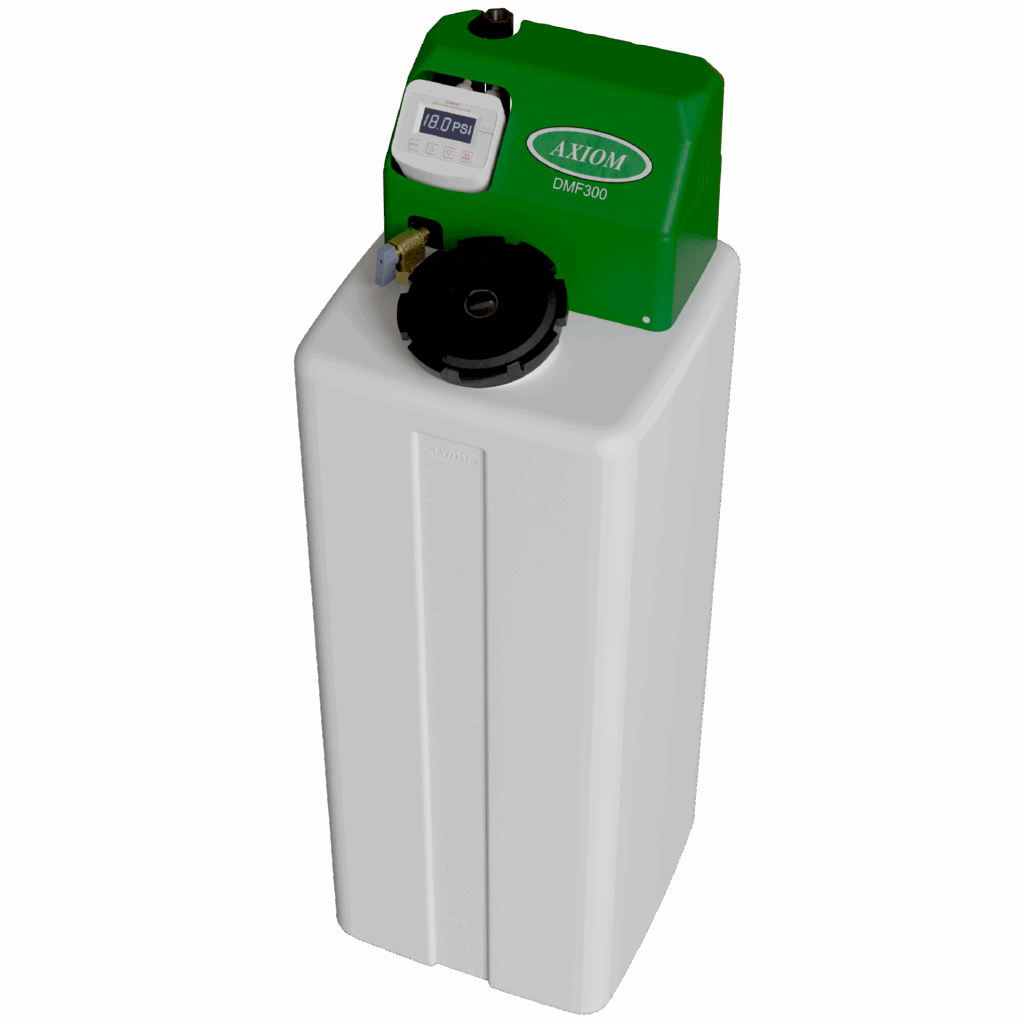

DMF300 ‘Pressure Pal’ Digital Mini System Feeder
Overview
Features & Benefits
- 64 litre (17 US gallon) tank for storage and mixing
- All features shown on user friendly digital display screen
- 0-45psig Pressure Setpoint with adjustable dead band
- N.O./N.C. Alert contacts and LED light enabled when low level, low pressure, or high-pressure condition
- Tilted 5” easy fill access on front of tank
- UL listed Power supply plugs into any standard 115 VAC outlet
- Diaphragm pump can run dry without damage
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
- Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low
- Diverter valve allows easy purging of air on initial start-up, and manual mixing of solution
- Fluid drained for service can easily be put back into the system
- Prevents major floods
- Provides leak detection
Specifications
| Specification | Value |
|---|---|
| Tank Capacity (USG) | 17 |
| Tank Capacity (Liters) | 64 |
| Pressure Range Max (PSI) | 45 |
| Number of Pumps | 1 |
Download Resources
Feeder Sizer
Use the calculator below to determine which System Feeder will best suit your application.
