Axiom’s Chemical By-Pass Feeder delivers chemicals to any closed loop system. Maintaining a chemically balanced hydronic system has never been easier.
Max Pressure and Temperature: 265psi (1.83MPa) at 200 ̊F (93 ̊C)
Connections: FNPT (3⁄4”)
Chemical By Pass Feeder, CBF Series, FilterPAK

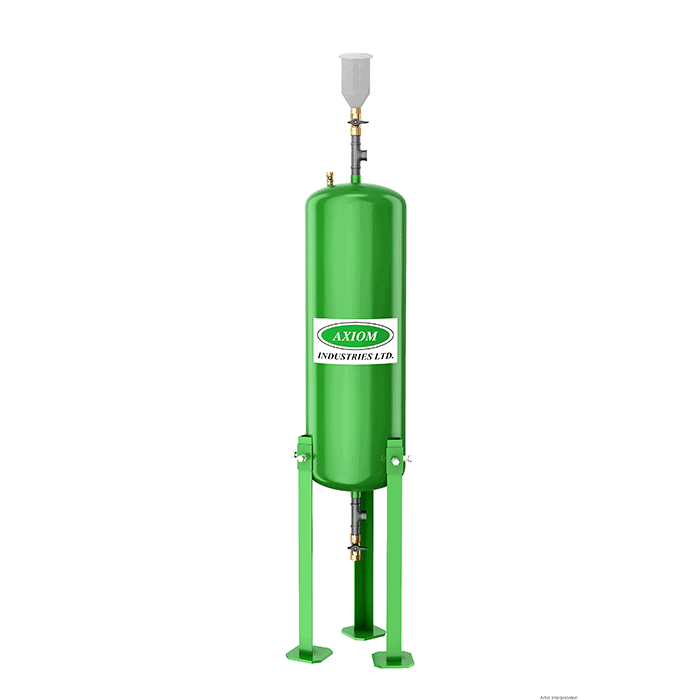

CBF-5 : Chemical By Pass Feeder
Overview
Features & Benefits
- Allows for safe and easy chemical dosing.
- Ball valves for easy chemical dosing and pot feeder isolation
- Graduated funnel with stainless steel filter for clean, accurate, and mess free chemical addition
- Pressure vessel and fittings made with brass and Carbon steel
- 5 Gallon (18.9L) model comes with adjustable steel legs.
Specifications
| Specification | Value |
|---|---|
| Tank Capacity (USG) | 5 |
| Tank Capacity (Liters) | 18.9 |
| Pressure Range Min (PSI) | 265 |
| Pressure Range Max (PSI) | 265 |
| Connection Size | 3/4" |
| Stainless Steel | True |
Download Resources
Chemical By-Pass Feeder Sizer
Use the calculator below to determine which PotFeeder will best suit your application.
